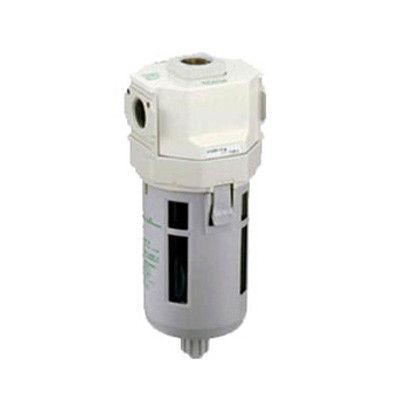

Ball float drain

Condensed water is guided intowater trap, where the trapped water will be automatically discharged when the floating ball reaches a certain level. Featuring such merits as small size, easy installation, and high reliability, are suitable for discharging condensed water accumulated at the bottom of refrigerated dryers and compressed air pipelines.

<Automatic drainers>
Filters of various precision are selected in accordance with the quality requirements for compressed air in order to remove impurities and oil mist in and/or odors of compressed air to yield purified compressed air.
● Product superior

Draining devices featuring light weight, compact structure, long service life, and high reliability.

● Product flow chart


Product Model
DT-4000-15-W
Suitable air compressor power range
 0.75 kW~75 kW
Water discharging method

Drainage pipe and fittings
◆connectable with straight Nylon pipes of internal diameter φ5.7〜φ6.
Standard equipment – manual discharge operation

◆Water can be manually discharged
◆Water can be discharged with residual pressure

Product Specifications


Product Model
DT-4000-15-W
Fluid UsedCompressed air condensate
Fluid Temperature
 5~65  ℃
Product Type
floating ball
Inlet Pressure
 1.5~10   ㎏/㎝²G
Excretion
 30   cc
Diameter of Inlet Pipes
 ½"
Discharge caliber
Nylon tube diameter 5.7~6㎜
Width
79   ㎜
Height
201   ㎜
Weight
0.45   ㎏
